P2.5 Outdoor LED Display

Product

P2.5 Outdoor LED Display

High-clarity P2.5 outdoor LED display for close-view advertising and smart city signage.

P2.5Outdoor LEDLED Display

Get Quotation Back to Products

Key Features

320 x 160 mm universal module size
High protection class LED lamp and sealed front
Waterproof and moisture-proof design
High brightness with efficient heat dissipation
High refresh rate and grayscale performance
Compatible replacement for P2.5 ~ P8 LC series
Customizable for coastal or high-humidity sites

Overview

The P2.5 outdoor LED display module delivers crisp visuals for closer viewing distances while staying rugged in harsh weather. With sealed front protection, high brightness, and LC-series compatibility, it is ideal for storefronts, facades, and outdoor media walls.

Key Features

320 x 160 mm universal module size
High protection class LED lamp and sealed front
Waterproof and moisture-proof design
High brightness with efficient heat dissipation
High refresh rate and grayscale performance
Compatible replacement for P2.5 ~ P8 LC series
Customizable for coastal or high-humidity sites

Applications

Outdoor billboards
Storefront signage
Building facades
Public information displays
Smart city signage

Specifications

Pixel Pitch: 2.5 mm
LED Type: SMD1415
Module Resolution (W x H): 128 x 64 = 8,192 pixels
Pixel Density: 160,000 dots/m2
Module Size (W x H x D): 320 x 160 x 17.5 mm
Module Weight: 0.46 +/- 0.02 kg
HUB Type: HUB75
Brightness: 4,000 ~ 4,500 cd/m2
Color Temperature: 6,500 K (Adjustable 1,000 K ~ 9,500 K)
Viewing Angle (H/V): 140 deg / 140 deg
Brightness/Color Uniformity: >= 98 %
Contrast Ratio: 5,000 : 1
Max Power Consumption: 879 W/m2
Typical Power Consumption: 293 W/m2
Input Voltage: AC 90-132 V / AC 186-264 V (47-63 Hz)
Frame Frequency: 60 Hz
Refresh Rate: 1920 Hz
Processing Depth: 12-14 bit
Video Support: 2K HD / 4K UHD
Life Span: 100,000 hours
Operating Temp / Humidity: -20 C ~ 50 C / 10% ~ 80% RH (No Condensation)
Storage Temp / Humidity: -20 C ~ 55 C / 10% ~ 85% RH (No Condensation)
Certifications: BIS / CE / CB / ROHS / EAC

Related Products

P3 Outdoor LED Display Module

P3 Outdoor LED Display Module

High-brightness P3 outdoor LED module for billboards, stadiums, and digital signage.

P4 Outdoor LED Display Screen Panel Module

P4 Outdoor LED Display Screen Panel Module

P4 outdoor LED screen panel module with 320 x 160 mm size and high brightness.

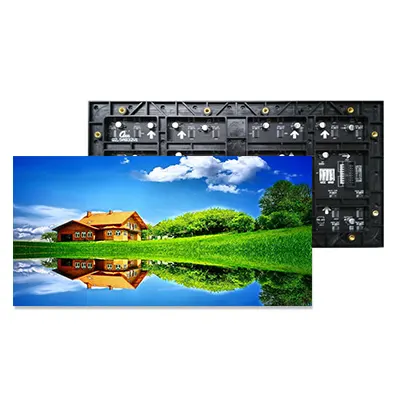

P5 Outdoor LED Display Module

P5 Outdoor LED Display Module

P5 outdoor LED module with 320 x 160 mm size for long-distance advertising.

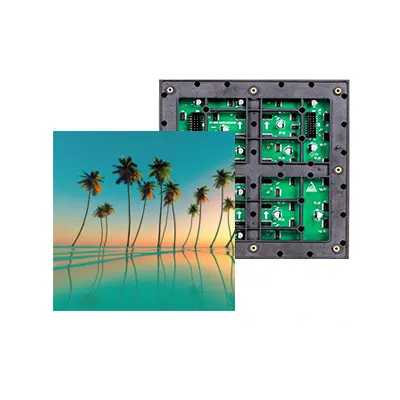

P6 Outdoor LED Display

P6 Outdoor LED Display

P6 outdoor LED display with 192 x 192 mm module size and durable IP protection.

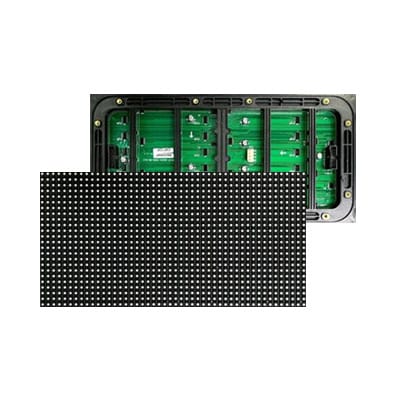

P6.67 Outdoor LED Display Module
